Direct Acting Steam Driven pumps are suited for use in hazardous areas such as oil refineries, petrochemical plants, etc.  They are ideal for very difficult applications as these pumps operate at low speed to reduce wear and pressure pulsations.  They are also most suited to applications involving high liquid temperatures and low available NPSH.

Pump Type

DUPLEX & SINGLEX SIDE POT

Suitable for higher discharge pressure and higher temperature applications.

Discharge pPressures up to 52 bar, flow rates up to 80 m3/hr.

DUPLEX CAP & VALVE

Suitable for a variety of general refinery process duties requiring low to medium discharge pressures.

Discharge Pressures up to 24 Bar, flow rates up to 250 m3/hr.

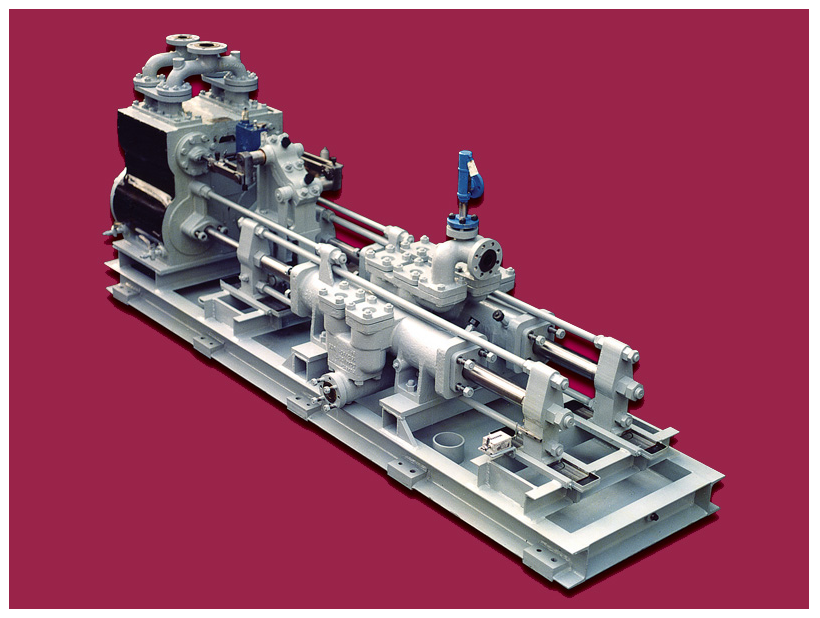

OUTSIDE RAM TYPE

Suitable for Hydraulic and High Pressure Injection service. Specially designed with suitable load ratio to generate high discharge pressure many times greater than the effective pressure of the motive Steam/Gas.

Discharge Pressures up to 172 bar, flow rates up to 15 m3/hr.

Design Features

• Self Priming
• Solids Handling Capability
• Powered by High Pressure, Medium Pressure, Low Pressure or process exhaust steam
• Intrinsically safe, most suitable for use in hazardous areas
• Suitable for pumping liquids of variable viscosity & temperature
• Variable Output from zero to maximum capacity
• Pumps aailable in a variety of materials to ensure compatibility with the pumping medium
• Light Weight Disc Valves incorporated for low NPSH requirements
• Designed in accordance with API 674 & the Hydraulic Institute
• Flange ratings to suit customer requirements
• Water cooled stuffing boxes are fitted for elevated pumping temperatures and process liquids with low specific gravity
• Steam jacketed liquid ends utilized for liquids with high viscosity
